- Custom designed, heavy-duty single-cylinder engine to withstand in-cylinder pressures of up to 300 bar under non-optical mode
- Capable of running high intake boost pressure up to 8 bar and high load conditions
- Port fuel injection and direct fuel injection for low temperature combustion research
- Equipped with two access ports with VisioScope to record images or video of combustion and syncronized with illumination and egnine cycles
- Coupled with high capacity 460 kW AC dynamometer
- Connected to CoolCon and LubCon to regulate the engine tests
- Intergreated to emission analysers,
- Intake boost, EGR and backpressure control and fuel injection control

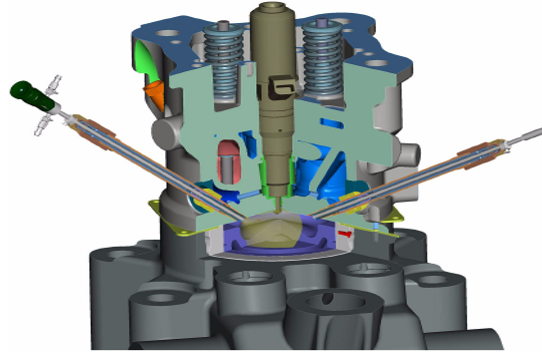

AVL SCRE with Visioscope Access Ports
Main Specifications of AVL SCRE
